Network Topology Mapper- SysAI

See It In Action

Upload a config → Get professional documentation in 30 seconds

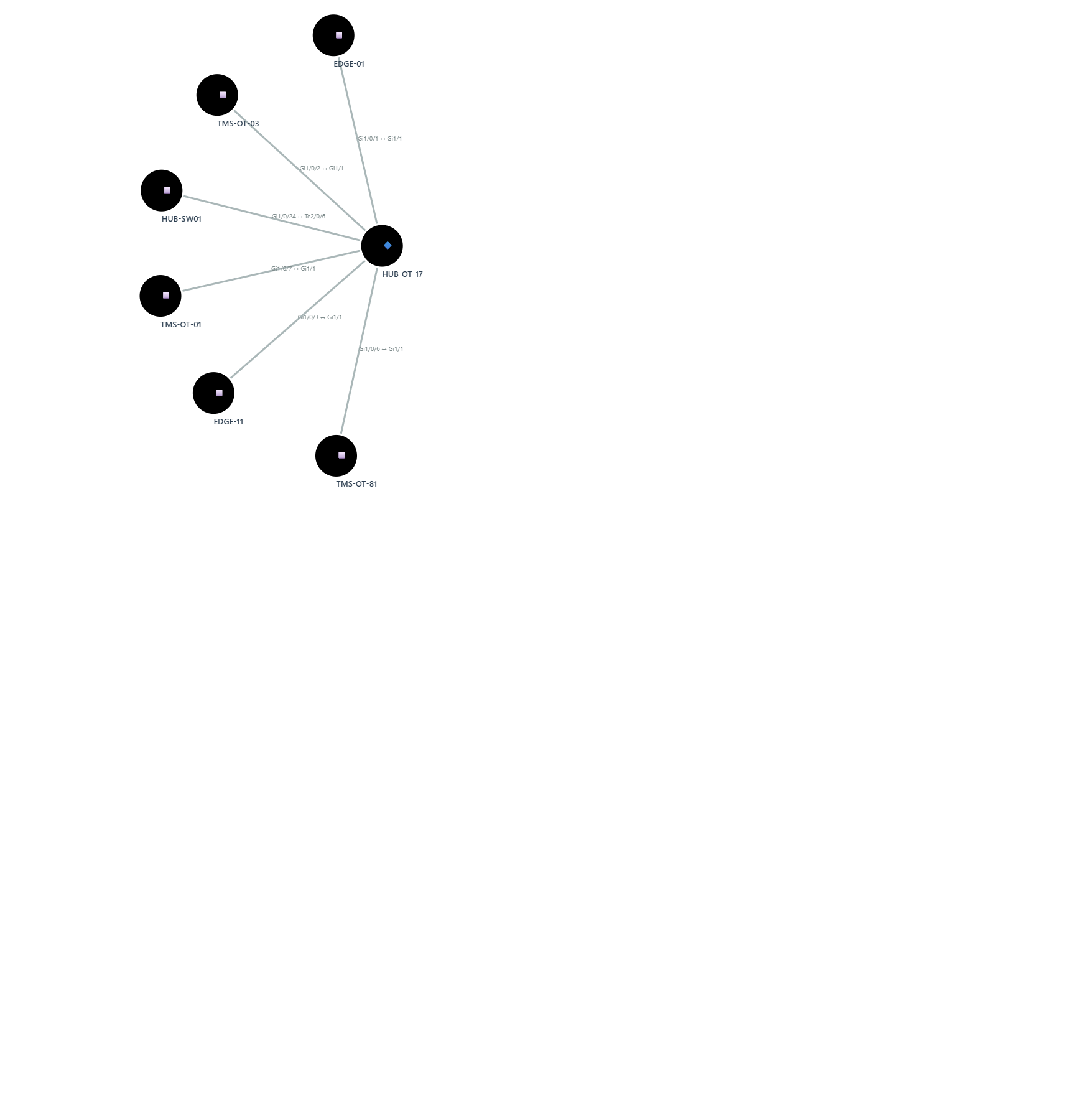

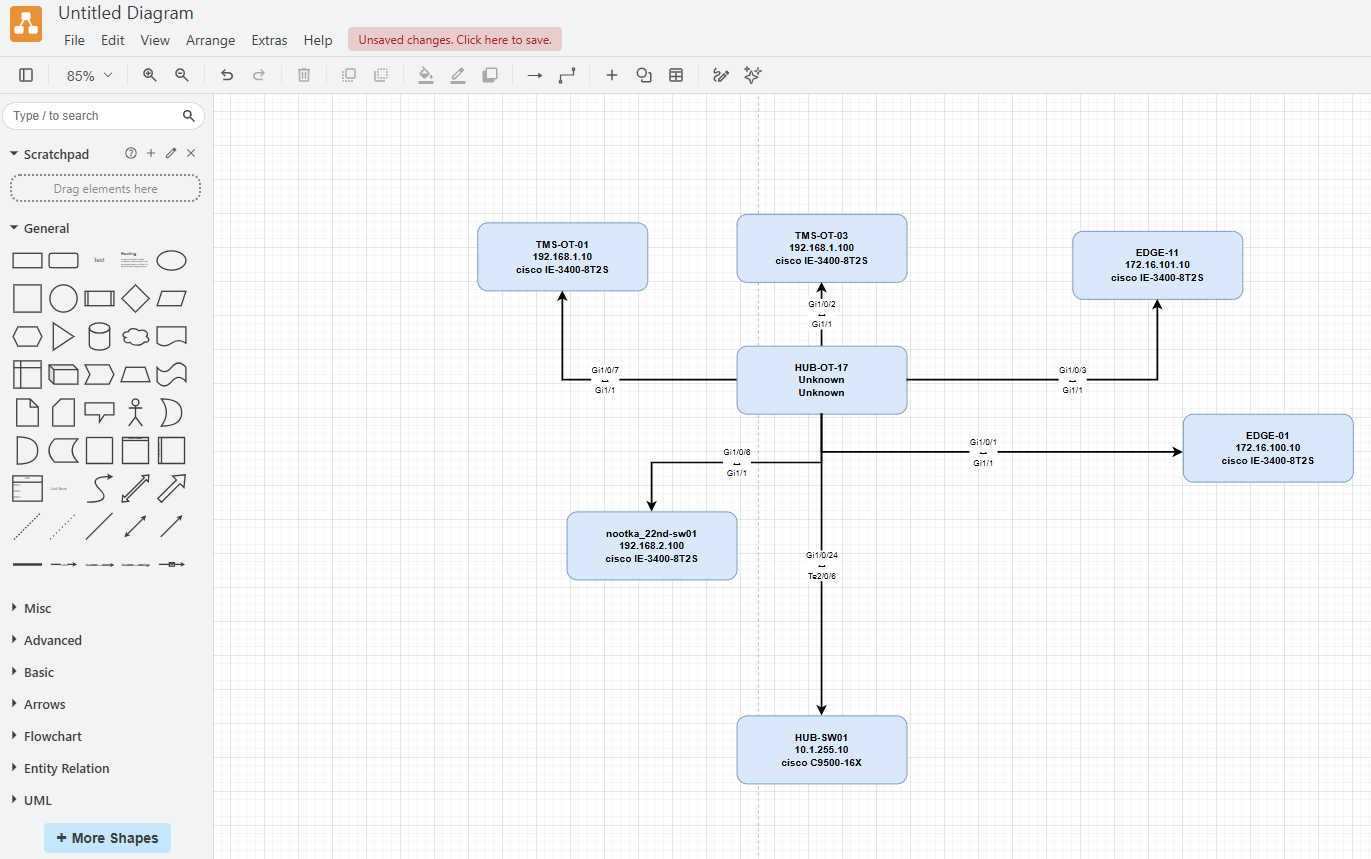

View Sample PNG → View Sample Toplogy Mapper → View Sample Draw.io

🔍

Auto-Discovery

Automatically parse CDP/LLDP (Beta) output and build network topology

📊

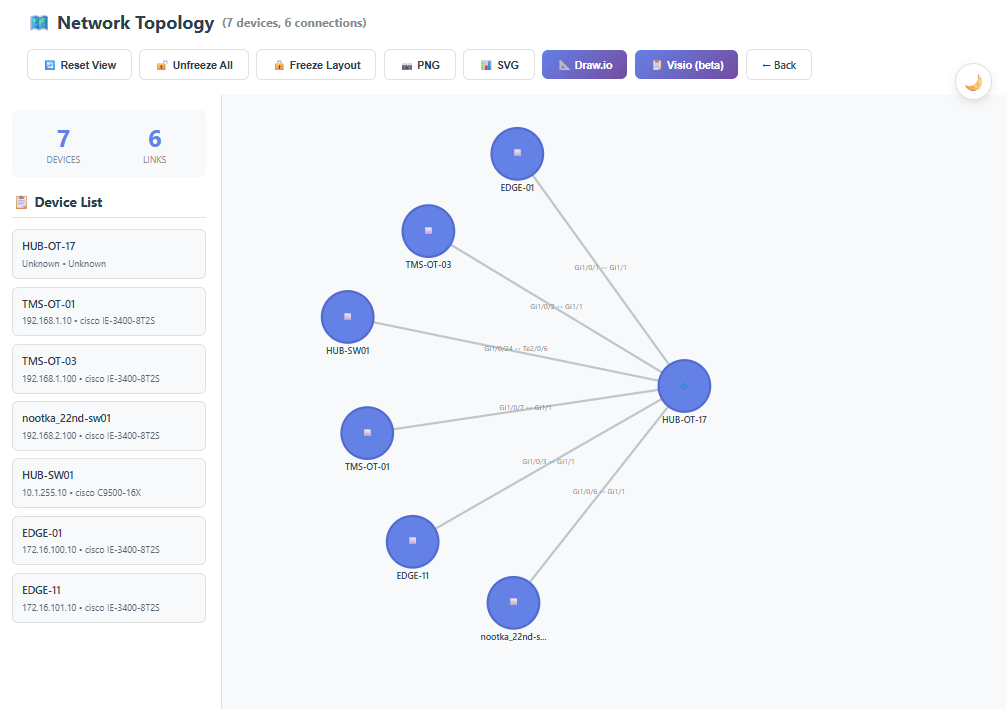

Interactive Diagram

Drag, zoom, and click nodes to explore your network

📥

Multi-Format Export

Export to PNG, SVG, Draw.io, and Visio formats

📱

Mobile-Friendly

Works perfectly on any device

Upload CDP/LLDP (Beta) Output

Upload "show cdp neighbors detail" or "show lldp neighbors detail" output

📋 Expected Input Format

ROUTER-01#show cdp neighbors detail
-------------------------
Device ID: SWITCH-01.company.com
Entry address(es):
  IP address: 192.168.1.10
Platform: cisco C9300-48P,  Capabilities: Switch IGMP
Interface: GigabitEthernet0/0/1,  Port ID (outgoing port): GigabitEthernet1/0/24

SWITCH-01#show cdp neighbors detail
-------------------------
Device ID: ROUTER-01.company.com
...

💡 Tip: For multiple devices, include the device prompt (hostname#) before each command.
📥 Download sample template
